MTU

MTU MTU 20V4000 G63

4000 Series

In Production

The MTU MTU 20V4000 G63 is a 95.4-litre V20 diesel engine for generator sets, rated at 3,004 kVA / 2,403 kWe standby power at 1,500 RPM (50 Hz). It is a liquid-cooled engine built in Germany.

Get help with this engine

Tell Haifeng whether you already own a MTU MTU 20V4000 G63 engine/generator or need to source this model for a project.

I need service / overhaul supportFor overhaul, parts, documents, troubleshooting, or replacement matching.For clients who already have this engine or generator: overhaul, spare parts, documentation, troubleshooting, or replacement matching.WhatsApp service request I need to source this engineFor projects, tenders, overseas sourcing, availability, or equivalents.For projects, client leads, tenders, overseas sourcing, package availability, or acceptable equivalents.WhatsApp sourcing request

Download datasheet Compare engine Get a quote

Manufacturer files: 1 datasheet
Last updated: 2026-05-29
Package route: diesel generator sets

Standby Power · 50 Hz: 3,004 kVA
Electrical Output: 2,403 kWe
Cylinders: V20
Displacement: 95.4 L
Rated Speed: 1,500 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

50 Hz1500 RPM

	kWm	kWe	kVA
Standby Power	2670	2403	3003.8

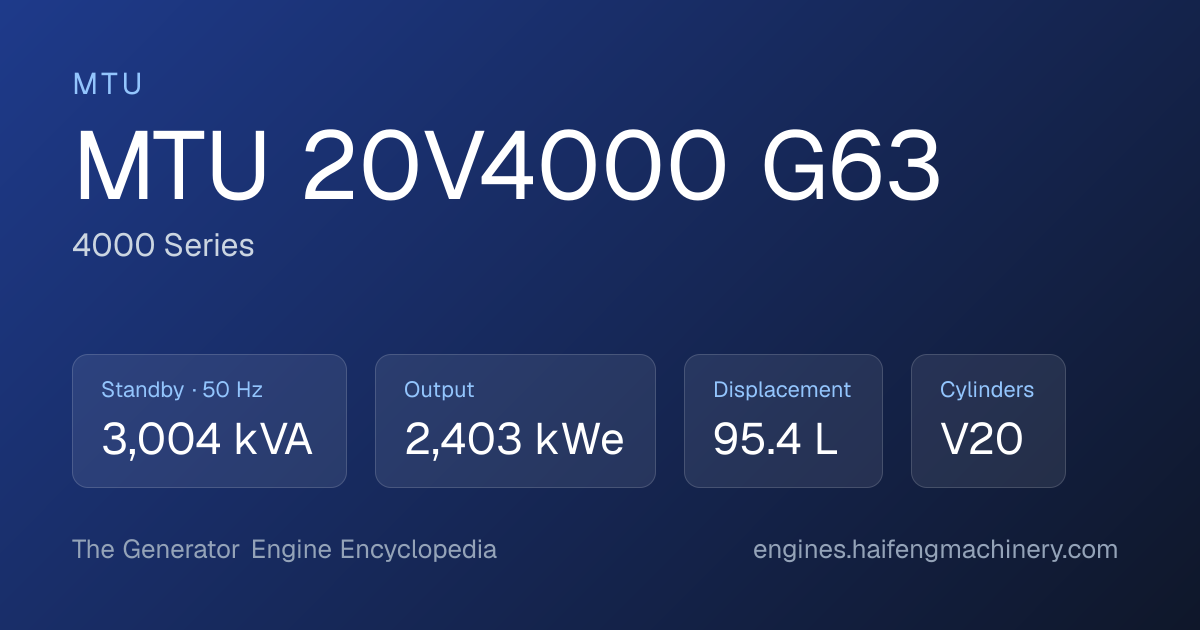

MTU MTU 20V4000 G63 95.4L V20 diesel generator engine — 3,004 kVA standby specifications — Shareable spec cardMTU MTU 20V4000 G63 summary imageOpen image

MTU MTU 20V4000 G63 generator set context

The MTU MTU 20V4000 G63 is listed here as a diesel generator-drive engine for 50 Hz generator sets, with a headline 3,004 kVA / 2,403 kWe / standby rating. Use this page to compare the published engine output, electrical kWe/kVA ratings, emissions level, datasheet availability, and neighboring models before specifying an alternator, controller, enclosure, voltage, and compliance package.

Also searched as

mtu20v4000g63MTU MTU 20V4000 G634000 Series MTU 20V4000 G63

BrandAll MTU engines CompareSimilar engines Haifeng packagediesel generator sets

Technical Specifications

Brand	MTU
Model	MTU 20V4000 G63
Series	4000 Series
Configuration	V20
Cylinders	20
Displacement	95.4 L
Fuel Type	Diesel
Ignition Type	Compression Ignition
Cooling Method	Liquid-Cooled
Emissions Standard	Unregulated
Country of Origin	Germany

Frequently asked questions

What is the power output of the MTU MTU 20V4000 G63?

The MTU MTU 20V4000 G63 is rated at 3,004 kVA standby at 50 Hz (1,500 rpm).

Does the MTU 20V4000 G63 run at 50 Hz or 60 Hz?

The MTU MTU 20V4000 G63 is rated for 50 Hz (1,500 rpm).

What fuel does the MTU MTU 20V4000 G63 use?

The MTU MTU 20V4000 G63 is a diesel generator-set engine.

What is the displacement and cylinder configuration of the MTU 20V4000 G63?

The MTU MTU 20V4000 G63 is a V20 (20-cylinder) engine with a displacement of 95.4 L.

Is the MTU MTU 20V4000 G63 still in production?

Yes — the MTU MTU 20V4000 G63 is a current production model.

Is a datasheet available for the MTU 20V4000 G63?

Yes — an official MTU datasheet for the MTU MTU 20V4000 G63 can be downloaded from this page.
