MTU

MTU MTU 20V4000 G94S

4000 Series

In Production

The MTU MTU 20V4000 G94S is a 95.4-litre V20 diesel engine for generator sets, rated at 3,926 kVA / 3,141 kWe standby power at 1,800 RPM (60 Hz). It is a liquid-cooled engine built in Germany.

Get help with this engine

Tell Haifeng whether you already own a MTU MTU 20V4000 G94S engine/generator or need to source this model for a project.

I need service / overhaul supportFor overhaul, parts, documents, troubleshooting, or replacement matching.For clients who already have this engine or generator: overhaul, spare parts, documentation, troubleshooting, or replacement matching.WhatsApp service request I need to source this engineFor projects, tenders, overseas sourcing, availability, or equivalents.For projects, client leads, tenders, overseas sourcing, package availability, or acceptable equivalents.WhatsApp sourcing request

Download datasheet Compare engine Get a quote

Manufacturer files: 1 datasheet
Last updated: 2026-05-29
Package route: diesel generator sets

Standby Power · 60 Hz: 3,926 kVA
Electrical Output: 3,141 kWe
Cylinders: V20
Displacement: 95.4 L
Rated Speed: 1,800 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

60 Hz1800 RPM

	kWm	kWe	kVA
Standby Power	3490	3141	3926.3

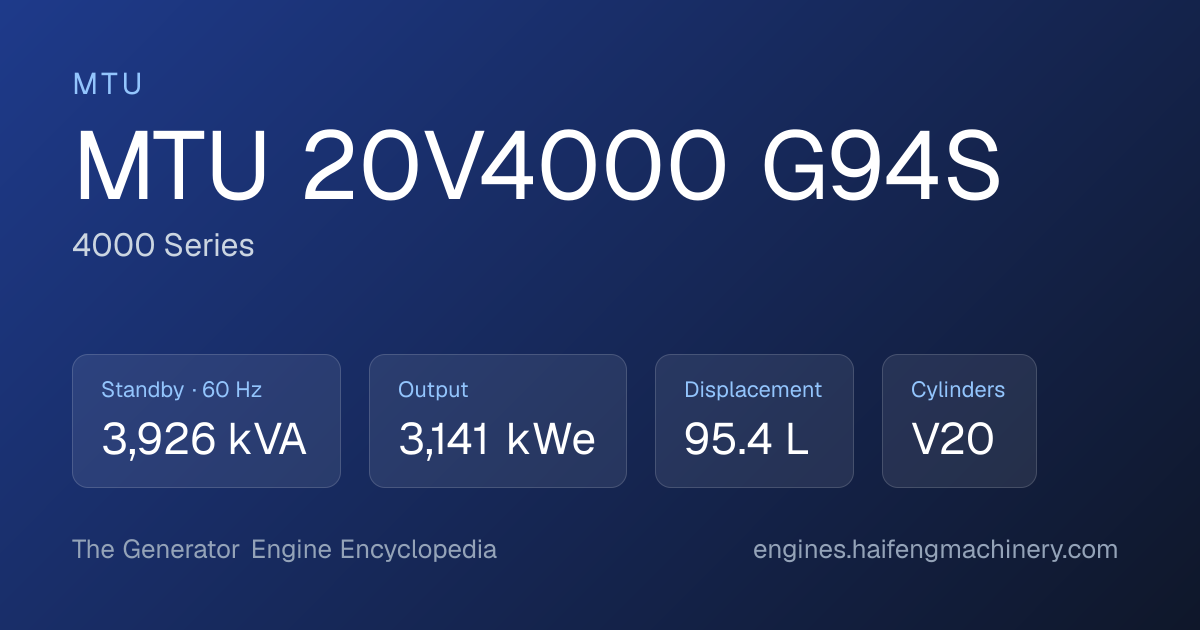

MTU MTU 20V4000 G94S 95.4L V20 diesel generator engine — 3,926 kVA standby specifications — Shareable spec cardMTU MTU 20V4000 G94S summary imageOpen image

MTU MTU 20V4000 G94S generator set context

The MTU MTU 20V4000 G94S is listed here as a diesel generator-drive engine for 60 Hz generator sets, with a headline 3,926 kVA / 3,141 kWe / standby rating. Use this page to compare the published engine output, electrical kWe/kVA ratings, emissions level, datasheet availability, and neighboring models before specifying an alternator, controller, enclosure, voltage, and compliance package.

Also searched as

mtu20v4000g94sMTU MTU 20V4000 G94S4000 Series MTU 20V4000 G94S

BrandAll MTU engines CompareSimilar engines Haifeng packagediesel generator sets

Technical Specifications

Brand	MTU
Model	MTU 20V4000 G94S
Series	4000 Series
Configuration	V20
Cylinders	20
Displacement	95.4 L
Fuel Type	Diesel
Ignition Type	Compression Ignition
Cooling Method	Liquid-Cooled
Emissions Standard	Unregulated
Country of Origin	Germany

Frequently asked questions

What is the power output of the MTU MTU 20V4000 G94S?

The MTU MTU 20V4000 G94S is rated at 3,926 kVA standby at 60 Hz (1,800 rpm).

Does the MTU 20V4000 G94S run at 50 Hz or 60 Hz?

The MTU MTU 20V4000 G94S is rated for 60 Hz (1,800 rpm).

What fuel does the MTU MTU 20V4000 G94S use?

The MTU MTU 20V4000 G94S is a diesel generator-set engine.

What is the displacement and cylinder configuration of the MTU 20V4000 G94S?

The MTU MTU 20V4000 G94S is a V20 (20-cylinder) engine with a displacement of 95.4 L.

Is the MTU MTU 20V4000 G94S still in production?

Yes — the MTU MTU 20V4000 G94S is a current production model.

Is a datasheet available for the MTU 20V4000 G94S?

Yes — an official MTU datasheet for the MTU MTU 20V4000 G94S can be downloaded from this page.
