HND 8L21/31

HND 8L21/31 — inline-8 diesel engine. Find specifications, documents and parts support below.

Production StatusIn Production

HND-MAN L21/31

Maximum Mechanical Power: 1,760 kW
Cylinders: L8
Rated Speed: 1,000 RPM

Estimated electrical output

Engine power × 0.90. These are estimates, not manufacturer generator ratings. Actual output depends on the alternator and operating conditions.

Frequency / duty	Engine	Estimate
Frequency and duty unverified	1,760 kWm	1,584 kWe

Datasheet & documents

Match the model number on your engine plate to the document. Check its revision date and the speed and duty listed for each power rating.

Downloads

Datasheet
HND manufacturer technical sheet — MAN Series Engine
3.3 MB

Source notes

HND-manufactured MAN-licensed generating-set engine.

Source rated engine/genset outputs are 1760/1672 kW at 1000 rpm, 50Hz; 1760/1672 kW at 900 rpm, 60Hz.

These are distinct mechanical/electrical outputs, not a power range.

Source does not designate ISO PRP/ESP, so prime and standby fields remain unset.

Power_kw is the 50Hz rated engine output.

Genset masses and dimensions are not engine-only specifications and are not populated as engine dimensions.

Fuel capability: HFO up to 700 cSt at 50 C.

Bore/stroke 210/310 mm.

Source PDF p2: hnd.com.cn · PDF

Status active means currently listed on the manufacturer or regional supplier website; factory production availability is not independently confirmed.

Additional generating-engine specifications from the HND MAN brochure, PDF page 2: displacement per cylinder 10.7 dm3 (manufacturer rounded value); maximum combustion pressure 21 MPa; lubricating-oil consumption 0.8 g/kWh.

These specifications belong to the generating-engine version, not the separate marine-propulsion table.

Source: hnd.com.cn · PDF

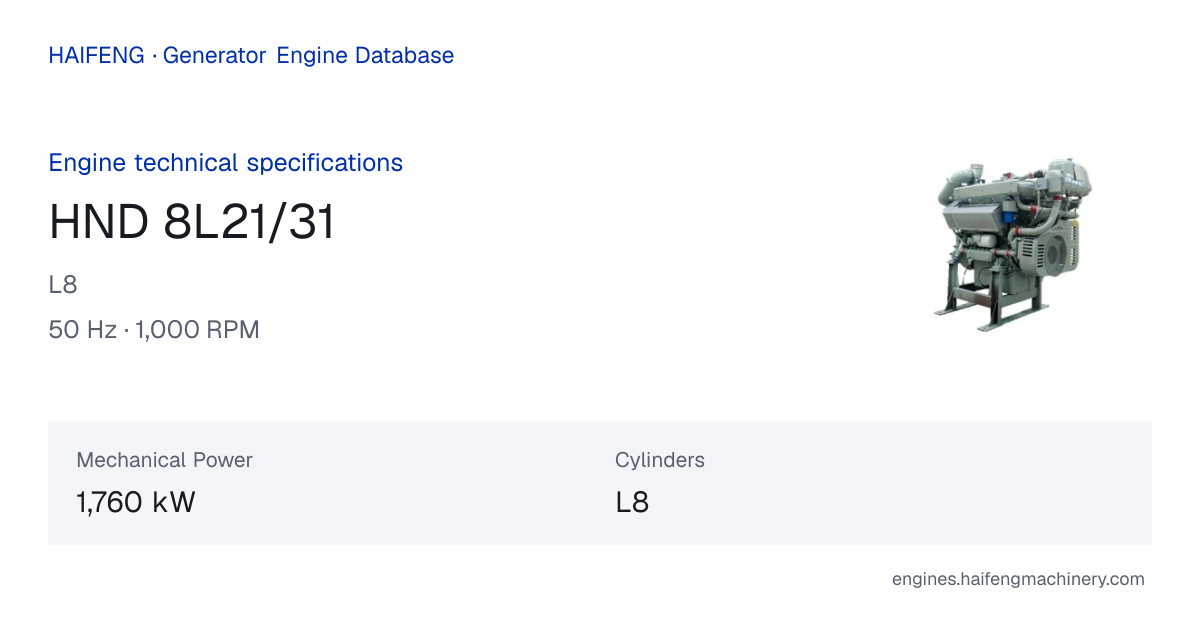

View 8L21/31 spec image

HND 8L21/31 L8 diesel high-speed industrial engine specifications — Shareable spec cardHND 8L21/31 summary imageOpen image

Technical specifications

Technical Specifications

Brand	HND
Model	8L21/31
Series	HND-MAN L21/31
Configuration	L8
Cylinders	8
Fuel Type	Diesel
Country of Origin	China

Check your engine model

The HND 8L21/31 is a high-speed industrial diesel engine rated at 1,760 kW mechanical output at 1,000 RPM. It is used in off-road equipment and can support engineered variable-speed power systems, but its maximum power is not a direct 50/60 Hz alternator rating. Verify the drivetrain, power electronics, cooling, and emissions installation with Volvo Penta before specifying a generator package.

Other ways this model is written

8l21318L21 31HND 8L21/31HND-MAN L21/31 8L21/31

BrandAll HND engines Complete generatorsdiesel generator sets

8L21/31 repair parts

Haifeng supplies overhaul parts, filters, fuel injection parts and engine controls. Send your engine plate and the parts you need for a parts and delivery quote.

Get a parts & air-shipping quote

In-stock parts: same-day dispatch

Worldwide air shipping. Tell us your city and country for a shipping quote and estimated arrival date.

Find the right part

Send your engine plate, part numbers or photos, quantity, and delivery city. Parts can differ between versions of the same engine.

I don’t have a readable nameplateGet my parts quote on WhatsApp

We’ll confirm the correct parts, stock and delivery cost before you order.

Opens WhatsApp. Attach photos in the chat.

Photos and details to send

Take a clear photo of the engine nameplate.
Tell us what needs repair or replacement.
Send both in WhatsApp to start a fitment check.

How to read your engine nameplate

Parts reference availability

We do not have a reviewed public parts preview for this model yet. Send the engine details and tell us what needs repair.

Get help with this engine

Need a manual, a replacement part or help with an engine problem? Tell us what happened and include the serial number if you have it.

Other ways to contact us

Scan QRHide QR

General WhatsApp chatScan with your phone. Add the model and your request in chat.Haifeng sales team

Need help after checking the documents?

Send us the part number or describe the problem. This engine model is included in your message.

Ask about parts on WhatsApp Discuss an engine on WhatsApp Send an enquiry by form

Send this model enquiry by email

Or browse Haifeng's diesel generator sets

Frequently asked questions

What is the maximum power output of the HND 8L21/31?

The HND 8L21/31 has a maximum mechanical output of 1,760 kW at 1,000 rpm. This is a variable-speed off-road rating, not a fixed-speed generator-set rating.

What fuel does the HND 8L21/31 use?

The HND 8L21/31 is a diesel variable-speed industrial engine.

What is the cylinder configuration of the 8L21/31?

The HND 8L21/31 is an inline-8 (8-cylinder) engine.

What is the catalog status of the HND 8L21/31?

The HND 8L21/31 is marked active in this database. Confirm current production and availability with the manufacturer; catalog status is not a live supply check.

Are reference documents available for the 8L21/31?

This page links reference documents for the HND 8L21/31. Check each document's title, model coverage, revision and rating conditions before using it for selection.
