HND CHD620L6

HND CHD620L6 — 26.55-litre inline-6 diesel engine. Find specifications, documents and parts support below.

View datasheet Ask about this engine

Production StatusProduction Discontinued

CHD620

Specifications and documentation remain archived for reference.

Mechanical Output: 710 kW
Cylinders: L6
Displacement: 26.55 L
Rated Speed: 1,500 / 1,800 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

50 Hz1500 RPM

Rating	Prime	Standby
Mechanical power kWm	650	710

60 Hz1800 RPM

Rating	Prime	Standby
Mechanical power kWm	690	759

Estimated electrical output

Engine power × 0.90. These are estimates, not manufacturer generator ratings. Actual output depends on the alternator and operating conditions.

Frequency / duty	Engine	Estimate
50 HzStandby	710 kWm	639 kWe
50 HzPrime	650 kWm	585 kWe
60 HzStandby	759 kWm	683.1 kWe
60 HzPrime	690 kWm	621 kWe

Datasheet & documents

Match the model number on your engine plate to the document. Check its revision date and the speed and duty listed for each power rating.

Downloads

Brochure
HND selection brochure — CHD620L6 — PDF pp. 73–76
15.7 MB

Source notes

Industrial engine ratings.

Bore/stroke 170/195 mm; V variants have 90-degree bank angle.

Weight excludes fan.

Marine auxiliary MCXN ratings differ and must not replace these industrial prime/standby values.

CHD620L6 is the exact designation printed in this catalogue; equivalence to the separately documented TBD620L6 is not established.

Source: HND Power and Equipment Selection Brochure, manufacturer archive uploaded August 2022: hnd.com.cn · source PDF pages 73–76.

Ratings are engine mechanical kW; 1500/1800 rpm are stored as 50/60 Hz direct-coupled generator ratings.

Production status is unconfirmed.

Discontinued is the owner-approved catalogue classification for historical models with unknown production status, not a manufacturer-confirmed discontinuation.

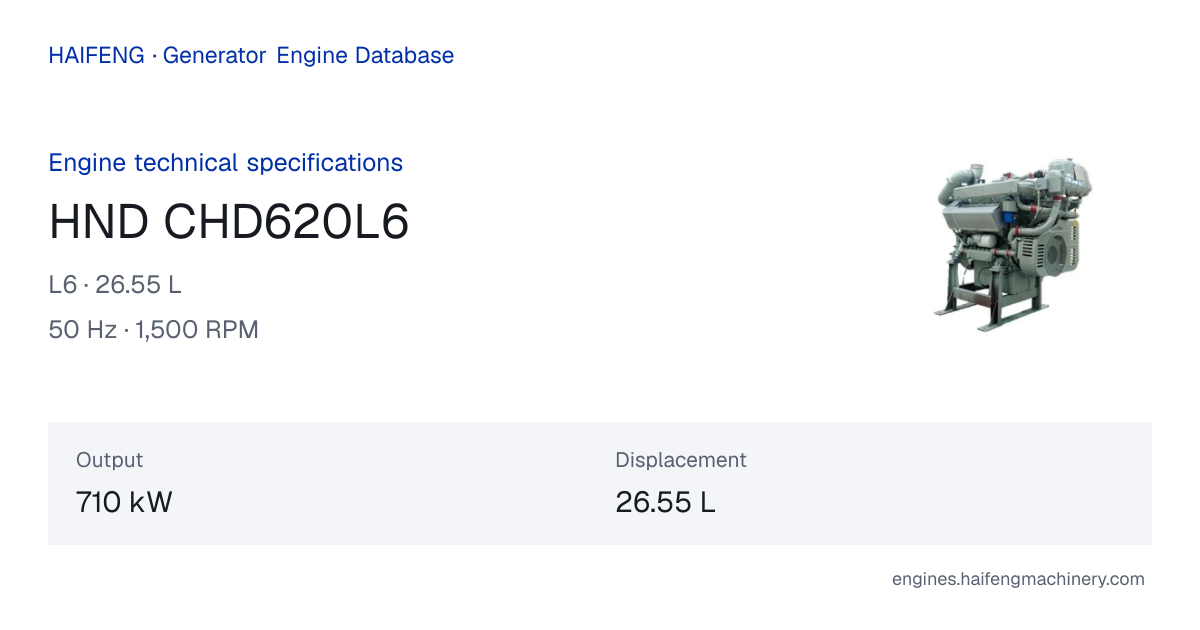

View CHD620L6 spec image

HND CHD620L6 26.55L L6 diesel generator engine specifications — Shareable spec cardHND CHD620L6 summary imageOpen image

Technical specifications

Technical Specifications

Brand	HND
Model	CHD620L6
Series	CHD620
Configuration	L6
Cylinders	6
Displacement	26.55 L
Compression Ratio	13.5:1
Dry Weight	3150 kg
Fuel Type	Diesel
Country of Origin	China

Check your engine model

The HND CHD620L6 is a diesel generator-drive engine for 50 Hz and 60 Hz generator sets, rated at 710 kW / standby rating. Match the model and serial number on your engine plate when requesting a manual or parts. The ratings and emissions information below help identify the version fitted to your generator.

Other ways this model is written

chd620l6HND CHD620L6

BrandAll HND engines Complete generatorsdiesel generator sets

CHD620L6 repair parts

Haifeng supplies overhaul parts, filters, fuel injection parts and engine controls. Send your engine plate and the parts you need for a parts and delivery quote.

Get a parts & air-shipping quote

In-stock parts: same-day dispatch

Worldwide air shipping. Tell us your city and country for a shipping quote and estimated arrival date.

Find the right part

Send your engine plate, part numbers or photos, quantity, and delivery city. Parts can differ between versions of the same engine.

I don’t have a readable nameplateGet my parts quote on WhatsApp

We’ll confirm the correct parts, stock and delivery cost before you order.

Opens WhatsApp. Attach photos in the chat.

Photos and details to send

Take a clear photo of the engine nameplate.
Tell us what needs repair or replacement.
Send both in WhatsApp to start a fitment check.

How to read your engine nameplate

Parts reference availability

We do not have a reviewed public parts preview for this model yet. Send the engine details and tell us what needs repair.

Get help with this engine

Need a manual, a replacement part or help with an engine problem? Tell us what happened and include the serial number if you have it.

Other ways to contact us

Scan QRHide QR

General WhatsApp chatScan with your phone. Add the model and your request in chat.Haifeng sales team

Need help after checking the documents?

Send us the part number or describe the problem. This engine model is included in your message.

Ask about parts on WhatsApp Discuss an engine on WhatsApp Send an enquiry by form

Send this model enquiry by email

Or browse Haifeng's diesel generator sets

Frequently asked questions

Does the CHD620L6 run at 50 Hz or 60 Hz?

The HND CHD620L6 is available for both 50 Hz (1,500 rpm) and 60 Hz (1,800 rpm).

What fuel does the HND CHD620L6 use?

The HND CHD620L6 is a diesel generator-set engine.

What is the displacement and cylinder configuration of the CHD620L6?

The HND CHD620L6 is an inline-6 (6-cylinder) engine with a displacement of 26.55 L.

Is the CHD620L6 still in production?

No — the HND CHD620L6 is discontinued. Its specifications and datasheets remain archived here for reference.

Are reference documents available for the CHD620L6?

This page links reference documents for the HND CHD620L6. Check each document's title, model coverage, revision and rating conditions before using it for selection.
