HND CHD622V16CR

HND CHD622V16CR — 78.08-litre V16 diesel engine. Find specifications, documents and parts support below.

View datasheet Ask about this engine

Production StatusProduction Discontinued

CHD622

Specifications and documentation remain archived for reference.

Mechanical Output: 2,190 kW
Cylinders: V16
Displacement: 78.08 L
Rated Speed: 1,500 / 1,800 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

50 Hz1500 RPM

Rating	Prime	Standby
Mechanical power kWm	1,980	2,190

60 Hz1800 RPM

Rating	Prime	Standby
Mechanical power kWm	2,320	2,550

Estimated electrical output

Engine power × 0.90. These are estimates, not manufacturer generator ratings. Actual output depends on the alternator and operating conditions.

Frequency / duty	Engine	Estimate
50 HzStandby	2,190 kWm	1,971 kWe
50 HzPrime	1,980 kWm	1,782 kWe
60 HzStandby	2,550 kWm	2,295 kWe
60 HzPrime	2,320 kWm	2,088 kWe

Datasheet & documents

Match the model number on your engine plate to the document. Check its revision date and the speed and duty listed for each power rating.

Downloads

Brochure
HND selection brochure — CHD622V16CR — PDF pp. 76–79
15.7 MB

Source notes

Industrial power station engine.

Bore/stroke 170/215 mm; 90-degree V.

SFC 198 g/kWh at both speeds.

Dimensions 3493 x 1536 x 2166 mm and weight exclude fan; approved drawings prevail.

Marine MCXN 2240 kW at 1500 rpm is a different duty rating.

Catalogue emission label C3, without independent certificate verification or EPA equivalence.

Source: HND Power and Equipment Selection Brochure, manufacturer archive uploaded August 2022: hnd.com.cn · source PDF pages 76–79.

Ratings are engine mechanical kW; 1500/1800 rpm are stored as 50/60 Hz direct-coupled generator ratings.

Production status is unconfirmed.

Discontinued is the owner-approved catalogue classification for historical models with unknown production status, not a manufacturer-confirmed discontinuation.

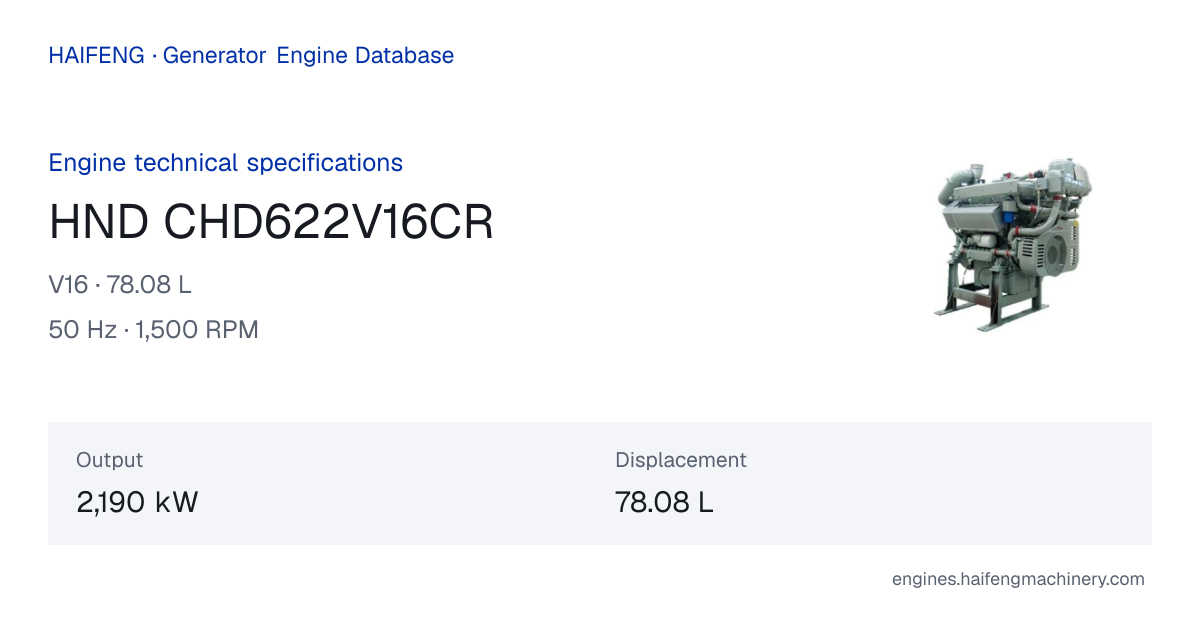

View CHD622V16CR spec image

HND CHD622V16CR 78.08L V16 diesel generator engine specifications — Shareable spec cardHND CHD622V16CR summary imageOpen image

Technical specifications

Technical Specifications

Brand	HND
Model	CHD622V16CR
Series	CHD622
Configuration	V16
Cylinders	16
Displacement	78.08 L
Compression Ratio	15:1
Dry Weight	7880 kg
Dimensions (L×W×H)	3493 × 1536 × 2166 mm
Fuel Type	Diesel
Country of Origin	China

Check your engine model

The HND CHD622V16CR is a diesel generator-drive engine for 50 Hz and 60 Hz generator sets, rated at 2,190 kW / standby rating. Match the model and serial number on your engine plate when requesting a manual or parts. The ratings and emissions information below help identify the version fitted to your generator.

Other ways this model is written

chd622v16crHND CHD622V16CR

BrandAll HND engines Complete generatorsdiesel generator sets

CHD622V16CR repair parts

Haifeng supplies overhaul parts, filters, fuel injection parts and engine controls. Send your engine plate and the parts you need for a parts and delivery quote.

Get a parts & air-shipping quote

In-stock parts: same-day dispatch

Worldwide air shipping. Tell us your city and country for a shipping quote and estimated arrival date.

Find the right part

Send your engine plate, part numbers or photos, quantity, and delivery city. Parts can differ between versions of the same engine.

I don’t have a readable nameplateGet my parts quote on WhatsApp

We’ll confirm the correct parts, stock and delivery cost before you order.

Opens WhatsApp. Attach photos in the chat.

Photos and details to send

Take a clear photo of the engine nameplate.
Tell us what needs repair or replacement.
Send both in WhatsApp to start a fitment check.

How to read your engine nameplate

Parts reference availability

We do not have a reviewed public parts preview for this model yet. Send the engine details and tell us what needs repair.

Get help with this engine

Need a manual, a replacement part or help with an engine problem? Tell us what happened and include the serial number if you have it.

Other ways to contact us

Scan QRHide QR

General WhatsApp chatScan with your phone. Add the model and your request in chat.Haifeng sales team

Need help after checking the documents?

Send us the part number or describe the problem. This engine model is included in your message.

Ask about parts on WhatsApp Discuss an engine on WhatsApp Send an enquiry by form

Send this model enquiry by email

Or browse Haifeng's diesel generator sets

Frequently asked questions

Does the CHD622V16CR run at 50 Hz or 60 Hz?

The HND CHD622V16CR is available for both 50 Hz (1,500 rpm) and 60 Hz (1,800 rpm).

What fuel does the HND CHD622V16CR use?

The HND CHD622V16CR is a diesel generator-set engine.

What is the displacement and cylinder configuration of the CHD622V16CR?

The HND CHD622V16CR is a V16 (16-cylinder) engine with a displacement of 78.08 L.

Is the CHD622V16CR still in production?

No — the HND CHD622V16CR is discontinued. Its specifications and datasheets remain archived here for reference.

Are reference documents available for the CHD622V16CR?

This page links reference documents for the HND CHD622V16CR. Check each document's title, model coverage, revision and rating conditions before using it for selection.
