HND CHD622V20

HND CHD622V20 — 97.6-litre V20 diesel engine. Find specifications, documents and parts support below.

View datasheet Ask about this engine

Production StatusIn Production

622

Mechanical Output: 2,800 kW
Cylinders: V20
Displacement: 97.6 L
Rated Speed: 1,500 / 1,800 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

50 Hz1500 RPM

Rating	Prime	Standby
Mechanical power kWm	2,540	2,800

60 Hz1800 RPM

Rating	Prime	Standby
Mechanical power kWm	2,600	2,900

Estimated electrical output

Engine power × 0.90. These are estimates, not manufacturer generator ratings. Actual output depends on the alternator and operating conditions.

Frequency / duty	Engine	Estimate
50 HzStandby	2,800 kWm	2,520 kWe
50 HzPrime	2,540 kWm	2,286 kWe
60 HzStandby	2,900 kWm	2,610 kWe
60 HzPrime	2,600 kWm	2,340 kWe

Datasheet & documents

Match the model number on your engine plate to the document. Check its revision date and the speed and duty listed for each power rating.

Downloads

Datasheet
HND manufacturer technical sheet — CHD622V20 Industrial Engine
97 KB

Source notes

Stationary genset diesel engine.

Manufacturer prime/standby engine ratings at 1500 rpm: 2540/2800 kW; at 1800 rpm: 2600/2900 kW. 50/60Hz mapping assumes four-pole alternator.

Bore/stroke 170/215 mm; V angle 90 degrees.

Fuel consumption 198 g/kWh, not converted to L/h.

Mechanical-pump and common-rail variants are distinct.

Source p1: hnd.com.cn · PDF

Status active means currently listed on the manufacturer or regional supplier website; factory production availability is not independently confirmed.

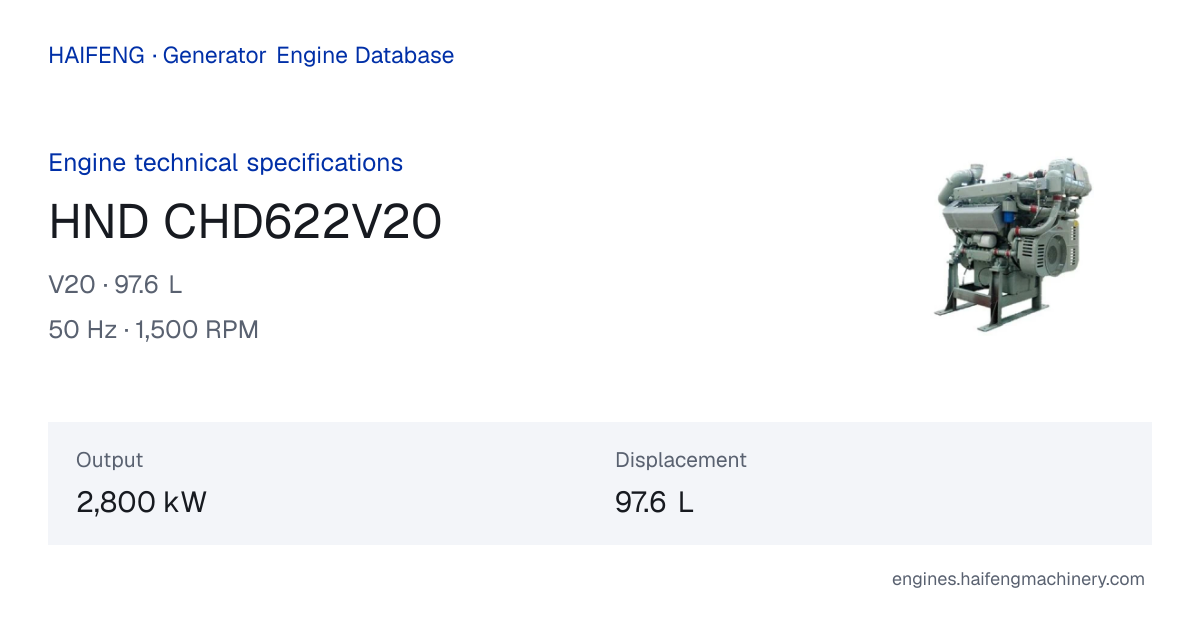

View CHD622V20 spec image

HND CHD622V20 97.6L V20 diesel generator engine specifications — Shareable spec cardHND CHD622V20 summary imageOpen image

Technical specifications

Technical Specifications

Brand	HND
Model	CHD622V20
Series	622
Configuration	V20
Cylinders	20
Displacement	97.6 L
Compression Ratio	14:1
Fuel Type	Diesel
Country of Origin	China

Check your engine model

The HND CHD622V20 is a diesel generator-drive engine for 50 Hz and 60 Hz generator sets, rated at 2,800 kW / standby rating. Match the model and serial number on your engine plate when requesting a manual or parts. The ratings and emissions information below help identify the version fitted to your generator.

Other ways this model is written

chd622v20HND CHD622V20

BrandAll HND engines Complete generatorsdiesel generator sets

CHD622V20 repair parts

Haifeng supplies overhaul parts, filters, fuel injection parts and engine controls. Send your engine plate and the parts you need for a parts and delivery quote.

Get a parts & air-shipping quote

In-stock parts: same-day dispatch

Worldwide air shipping. Tell us your city and country for a shipping quote and estimated arrival date.

Find the right part

Send your engine plate, part numbers or photos, quantity, and delivery city. Parts can differ between versions of the same engine.

I don’t have a readable nameplateGet my parts quote on WhatsApp

We’ll confirm the correct parts, stock and delivery cost before you order.

Opens WhatsApp. Attach photos in the chat.

Photos and details to send

Take a clear photo of the engine nameplate.
Tell us what needs repair or replacement.
Send both in WhatsApp to start a fitment check.

How to read your engine nameplate

Parts reference availability

We do not have a reviewed public parts preview for this model yet. Send the engine details and tell us what needs repair.

Get help with this engine

Need a manual, a replacement part or help with an engine problem? Tell us what happened and include the serial number if you have it.

Other ways to contact us

Scan QRHide QR

General WhatsApp chatScan with your phone. Add the model and your request in chat.Haifeng sales team

Need help after checking the documents?

Send us the part number or describe the problem. This engine model is included in your message.

Ask about parts on WhatsApp Discuss an engine on WhatsApp Send an enquiry by form

Send this model enquiry by email

Or browse Haifeng's diesel generator sets

Frequently asked questions

Does the CHD622V20 run at 50 Hz or 60 Hz?

The HND CHD622V20 is available for both 50 Hz (1,500 rpm) and 60 Hz (1,800 rpm).

What fuel does the HND CHD622V20 use?

The HND CHD622V20 is a diesel generator-set engine.

What is the displacement and cylinder configuration of the CHD622V20?

The HND CHD622V20 is a V20 (20-cylinder) engine with a displacement of 97.6 L.

What is the catalog status of the HND CHD622V20?

The HND CHD622V20 is marked active in this database. Confirm current production and availability with the manufacturer; catalog status is not a live supply check.

Are reference documents available for the CHD622V20?

This page links reference documents for the HND CHD622V20. Check each document's title, model coverage, revision and rating conditions before using it for selection.
