HND TBD234V8

HND TBD234V8 — 14.4-litre V8 diesel engine. Find specifications, documents and parts support below.

View datasheet Ask about this engine

Production StatusIn Production

234

Mechanical Output: 309 kW
Cylinders: V8
Displacement: 14.4 L
Rated Speed: 1,500 / 1,800 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

50 Hz1500 RPM

Rating	Prime	Standby
Mechanical power kWm	281	309

60 Hz1800 RPM

Rating	Prime	Standby
Mechanical power kWm	303	333

Estimated electrical output

Engine power × 0.90. These are estimates, not manufacturer generator ratings. Actual output depends on the alternator and operating conditions.

Frequency / duty	Engine	Estimate
50 HzStandby	309 kWm	278.1 kWe
50 HzPrime	281 kWm	252.9 kWe
60 HzStandby	333 kWm	299.7 kWe
60 HzPrime	303 kWm	272.7 kWe

Datasheet & documents

Match the model number on your engine plate to the document. Check its revision date and the speed and duty listed for each power rating.

Downloads

Brochure
HND selection brochure — TBD234V8 — PDF pp. 66–68, 71
15.7 MB

Source notes

Manufacturer-confirmed land and marine generating-station engine.

Land station ICXN continuous engine output at 1500/1800 rpm: 255/303 kW.

Marine station MCXN output at 1500/1800 rpm: 249/296 kW.

These duty codes are preserved rather than relabelled ISO PRP/ESP; frequency-specific prime/standby fields are intentionally unset.

Power_kw represents land ICXN at 1500 rpm.

Land emergency-station IXN (1000 h/year) output: 281/333 kW at 1500/1800 rpm.

Chinese manufacturer table specifies bore/stroke 128/140 mm and compression ratio 15:1; English overview instead says 120/140 mm.

Bore discrepancy remains pending the new catalogue; displacement follows the model-specific Chinese table.

Physical dimensions withheld pending confirmation.

Source: hnd.com.cn · source (reviewed 2026-10-26).

Status active means currently listed on the manufacturer or regional supplier website; factory production availability is not independently confirmed.

Follow-up verification: Explicit industrial prime/standby ratings at 1500/1800 rpm added.

Existing headline ICXN output is retained as a distinct source/duty value; V8/V12 catalogue prime figures differ from the website ICXN values.

Catalogue also supports 128 mm bore, while the English website says 120 mm; that source discrepancy remains flagged.

Source: HND Power and Equipment Selection Brochure, manufacturer archive uploaded August 2022: hnd.com.cn · source PDF pages 66–68, 71.

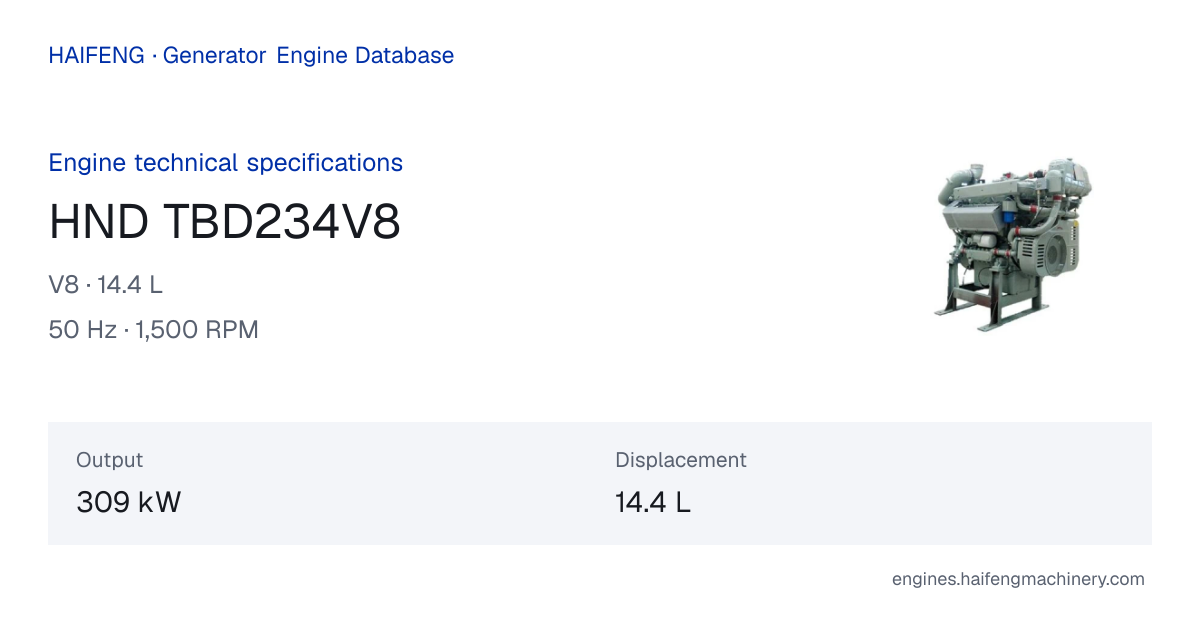

View TBD234V8 spec image

HND TBD234V8 14.4L V8 diesel generator engine specifications — Shareable spec cardHND TBD234V8 summary imageOpen image

Technical specifications

Technical Specifications

Brand	HND
Model	TBD234V8
Series	234
Configuration	V8
Cylinders	8
Displacement	14.4 L
Compression Ratio	15:1
Fuel Type	Diesel
Country of Origin	China
