MTU

MTU MTU 16V4000 G24S

4000 Series

In Production

The MTU MTU 16V4000 G24S is a 76.3-litre V16 diesel engine for generator sets, rated at 2,821 kVA / 2,257 kWe standby power at 1,800 RPM (60 Hz). It is a liquid-cooled engine built in Germany.

Get help with this engine

Tell Haifeng whether you already own a MTU MTU 16V4000 G24S engine/generator or need to source this model for a project.

I need service / overhaul supportFor overhaul, parts, documents, troubleshooting, or replacement matching.For clients who already have this engine or generator: overhaul, spare parts, documentation, troubleshooting, or replacement matching.WhatsApp service request I need to source this engineFor projects, tenders, overseas sourcing, availability, or equivalents.For projects, client leads, tenders, overseas sourcing, package availability, or acceptable equivalents.WhatsApp sourcing request

Download datasheet Compare engine Get a quote

Manufacturer files: 1 datasheet
Last updated: 2026-05-29
Package route: diesel generator sets

Standby Power · 60 Hz: 2,821 kVA
Electrical Output: 2,257 kWe
Cylinders: V16
Displacement: 76.3 L
Rated Speed: 1,800 RPM

Power Ratings

kWm = mechanical shaft power · kWe = electrical output · kVA = kWe ÷ 0.8 pf

60 Hz1800 RPM

	kWm	kWe	kVA
Prime Power	2280	2052	2565
Standby Power	2507.8	2257	2821.3

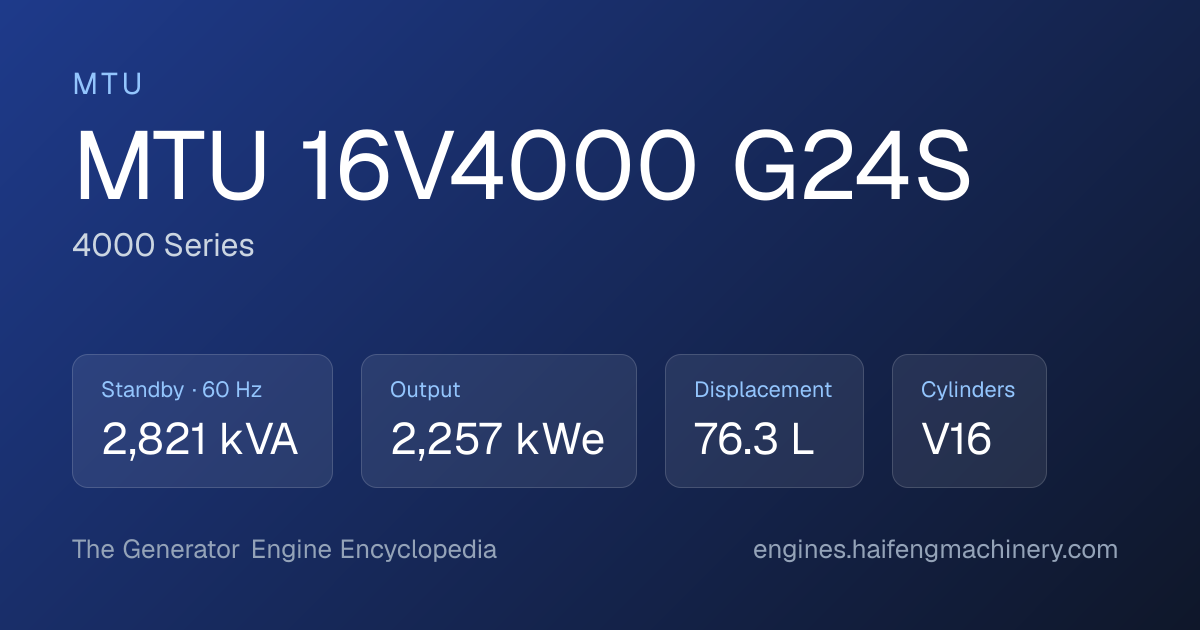

MTU MTU 16V4000 G24S 76.3L V16 diesel generator engine — 2,821 kVA standby specifications — Shareable spec cardMTU MTU 16V4000 G24S summary imageOpen image

MTU MTU 16V4000 G24S generator set context

The MTU MTU 16V4000 G24S is listed here as a diesel generator-drive engine for 60 Hz generator sets, with a headline 2,821 kVA / 2,257 kWe / standby rating. Use this page to compare the published engine output, electrical kWe/kVA ratings, emissions level, datasheet availability, and neighboring models before specifying an alternator, controller, enclosure, voltage, and compliance package.

Also searched as

mtu16v4000g24sMTU MTU 16V4000 G24S4000 Series MTU 16V4000 G24S

BrandAll MTU engines CompareSimilar engines Haifeng packagediesel generator sets

Technical Specifications

Brand	MTU
Model	MTU 16V4000 G24S
Series	4000 Series
Configuration	V16
Cylinders	16
Displacement	76.3 L
Fuel Type	Diesel
Ignition Type	Compression Ignition
Cooling Method	Liquid-Cooled
Emissions Standard	Unregulated
Country of Origin	Germany

Frequently asked questions

What is the power output of the MTU MTU 16V4000 G24S?

The MTU MTU 16V4000 G24S is rated at 2,821 kVA standby / 2,565 kVA prime at 60 Hz (1,800 rpm).

Does the MTU 16V4000 G24S run at 50 Hz or 60 Hz?

The MTU MTU 16V4000 G24S is rated for 60 Hz (1,800 rpm).

What fuel does the MTU MTU 16V4000 G24S use?

The MTU MTU 16V4000 G24S is a diesel generator-set engine.

What is the displacement and cylinder configuration of the MTU 16V4000 G24S?

The MTU MTU 16V4000 G24S is a V16 (16-cylinder) engine with a displacement of 76.3 L.

Is the MTU MTU 16V4000 G24S still in production?

Yes — the MTU MTU 16V4000 G24S is a current production model.

Is a datasheet available for the MTU 16V4000 G24S?

Yes — an official MTU datasheet for the MTU MTU 16V4000 G24S can be downloaded from this page.
