Wandi WD628E3TWD168

Q: What fuel does the Wandi WD628E3TWD168 use?

The Wandi WD628E3TWD168 is a diesel generator-set engine.

Q: What is the displacement and cylinder configuration of the WD628E3TWD168?

The Wandi WD628E3TWD168 is a V16 (16-cylinder) engine with a displacement of 62.73 L.

Q: What is the catalog status of the Wandi WD628E3TWD168?

The Wandi WD628E3TWD168 is marked active in this database. Confirm current production and availability with the manufacturer; catalog status is not a live supply check.

Q: Are reference documents available for the WD628E3TWD168?

This page links reference documents for the Wandi WD628E3TWD168. Check each document's title, model coverage, revision and rating conditions before using it for selection.

Wandi WD628E3TWD168 — 62.73-litre V16 diesel engine. Find specifications, documents and parts support below.

View datasheet Ask about this engine

Production StatusIn Production

Leiqing

Mechanical Output: 1,680 kW
Cylinders: V16
Displacement: 62.73 L
Rated Speed: 1,500 RPM

Estimated electrical output

Engine power × 0.90. These are estimates, not manufacturer generator ratings. Actual output depends on the alternator and operating conditions.

Frequency / duty	Engine	Estimate
Frequency and duty unverified	1,680 kWm	1,512 kWe

Datasheet & documents

Match the model number on your engine plate to the document. Check its revision date and the speed and duty listed for each power rating.

Downloads

Datasheet
Wandi LEIQING series — official engine technical parameters
77 KB

Source notes

Manufacturer: Wuxi Power Engineering Co., Ltd. (无锡动力工程股份有限公司), Wandi (万迪).

Official manufacturer product table, reviewed 2026-10-26.

Rated mechanical engine output 1680 kW at 1500 rpm.

Overload power 1848 kW.

V16, water-cooled, four-stroke, direct injection, turbocharged with water-to-air charge cooling.

Bore/stroke 160/195 mm.

Minimum specific fuel consumption 195 g/kWh; oil consumption <=0.48 g/kWh; exhaust temperature <=700 C.

Cooling-water capacities high/low circuit 150/40 L.

Oil capacity 250 L. 24 V electric starting; electronically controlled high-pressure common rail.

Manufacturer lists mass 10000 kg without a dry/wet qualifier.

Source does not establish ISO PRP/ESP duty; frequency-specific prime/standby fields are unset.

No emissions certification is inferred from family marketing claims or model suffixes.

Active indicates currently listed by the manufacturer, not independent confirmation of production availability.

Source: wdpower.com · source

Official Leiqing datasheet PDF p1 confirms the existing rated and source-labelled standby power values.

Its rounded displacements are 62.7/70.8 L; existing website values 62.73/70.82 L retained.

ISO duty remains unspecified.

Exhaust-temperature discrepancy unresolved: PDF <=680 C versus website <=700 C; neither is selected as a definitive limit.

Source: img01.71360.com · PDF

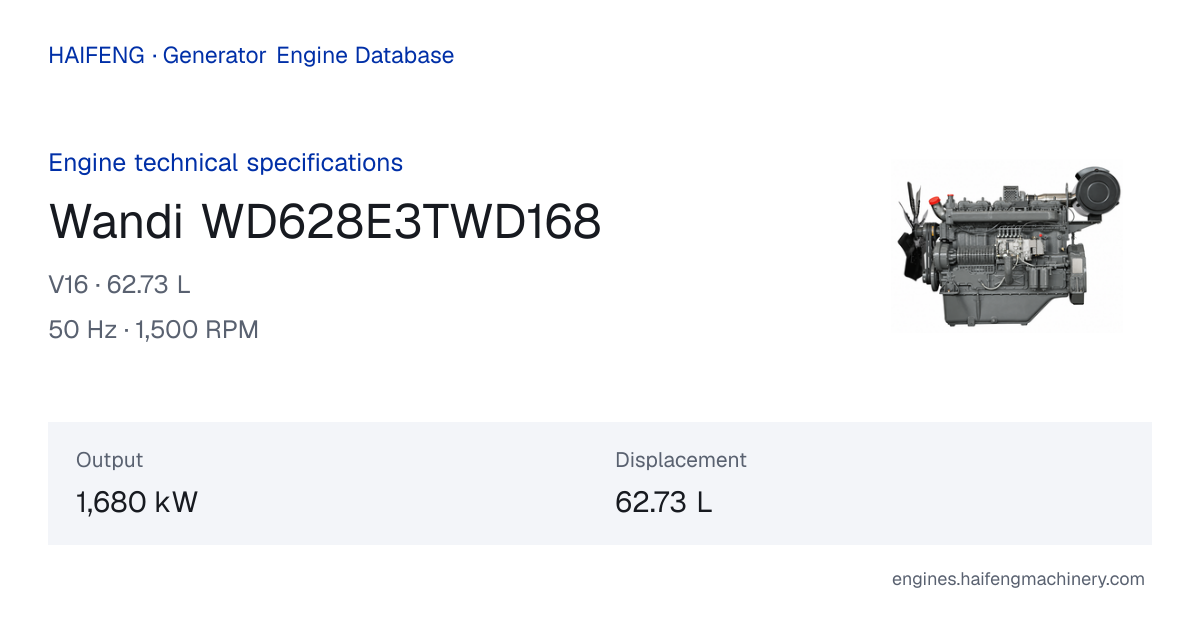

View WD628E3TWD168 spec image

Wandi WD628E3TWD168 62.73L V16 diesel generator engine specifications — Shareable spec cardWandi WD628E3TWD168 summary imageOpen image

Technical specifications

Technical Specifications

Brand	Wandi
Model	WD628E3TWD168
Series	Leiqing
Configuration	V16
Cylinders	16
Displacement	62.73 L
Dry Weight	10000 kg
Fuel Type	Diesel
Country of Origin	China

Check your engine model

The Wandi WD628E3TWD168 is a diesel generator-drive engine for applications whose frequency must be verified, rated at 1,680 kW / standby rating. Match the model and serial number on your engine plate when requesting a manual or parts. The ratings and emissions information below help identify the version fitted to your generator.

Other ways this model is written

wd628e3twd168Wandi WD628E3TWD168Leiqing WD628E3TWD168
