Yuchai
Yuchai YCD4A33H6-105
Source-checked against supplied Yuchai workbook 玉柴动力T3参数.xlsx, sheet YCD4A33H6(V31): 1500 rpm: rated engine 70 kW, standby engine 77 kW at 1500 rpm; matched genset 常用：60 / 备用：66 kW (model cell D6; rating cells D23, D24, D44). Engine rated power is labelled 额定 in the source, not explicitly ISO prime duty. Catalogue power_kw is the highest listed rated engine output. All calibration variants are retained here; frequency-specific prime/standby/electrical fields remain blank because the workbook does not explicitly specify frequency or ISO prime duty. No emissions certification inferred from workbook title. Production status is unknown. Discontinued is the user-authorized catalogue classification (2026-10-21 import), not manufacturer-confirmed cessation; no production-end year is asserted.
Need parts or a replacement for YCD4A33H6-105?
Scan QRHide QR
General WhatsApp chatScan with your phone. Add the model and your request in chat.Haifeng sales team- Supporting documents
- No documents linked
- Last updated
- 2026-10-21
- Package route
- diesel generator sets
- Mechanical Output
- 70 kW
- Cylinders
- L4
- Displacement
- 3.1 L
- Rated Speed
- 1,500 RPM
Estimated rating: 63 kWe (70 kW × 0.90) · Frequency and duty unverified
Planning estimate, not a manufacturer generator rating. Confirm the alternator, engine speed and operating conditions.
Yuchai YCD4A33H6-105 overhaul & repair parts
Need help identifying a part for your YCD4A33H6-105?
Share your nameplate, parts list and destination for a quote.
Identify my part on WhatsAppAvailability and earliest dispatch confirmed for your enquiry.
Opens WhatsApp. Attach photos in the chat.
What to send for a fitment check
- Take a clear photo of the engine nameplate.
- Tell us what needs repair or replacement.
- Send both in WhatsApp to start a fitment check.
Start with engine identification
We do not have a reviewed public parts preview for this model yet. Send the engine details and tell us what needs repair.
Illustrations only — not a model-specific kit or stock confirmation.

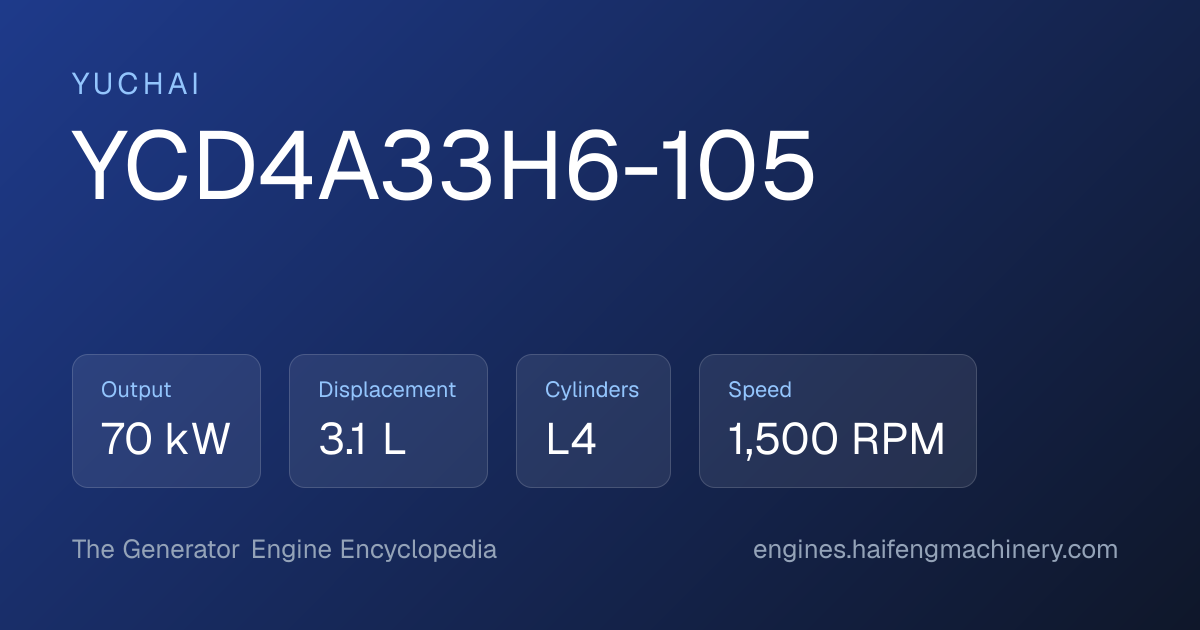

View YCD4A33H6-105 spec image
Yuchai YCD4A33H6-105 generator set context
The Yuchai YCD4A33H6-105 is listed here as a diesel generator-drive engine for applications whose frequency must be verified, with a headline 70 kW / standby rating. Use this page to compare the published engine output, electrical kWe/kVA ratings, emissions level, datasheet availability, and neighboring models before specifying an alternator, controller, enclosure, voltage, and compliance package.
Model name formats
Technical Specifications
| Brand | Yuchai |
| Model | YCD4A33H6-105 |
| Configuration | L4 |
| Cylinders | 4 |
| Displacement | 3.1 L |
| Fuel Type | Diesel |
| Ignition Type | Compression Ignition |
| Cooling Method | Liquid-Cooled |
Frequently asked questions
What fuel does the Yuchai YCD4A33H6-105 use?
The Yuchai YCD4A33H6-105 is a diesel generator-set engine.
What is the displacement and cylinder configuration of the YCD4A33H6-105?
The Yuchai YCD4A33H6-105 is an inline-4 (4-cylinder) engine with a displacement of 3.1 L.
Is the YCD4A33H6-105 still in production?
No — the Yuchai YCD4A33H6-105 is discontinued. Its specifications and datasheets remain archived here for reference.
